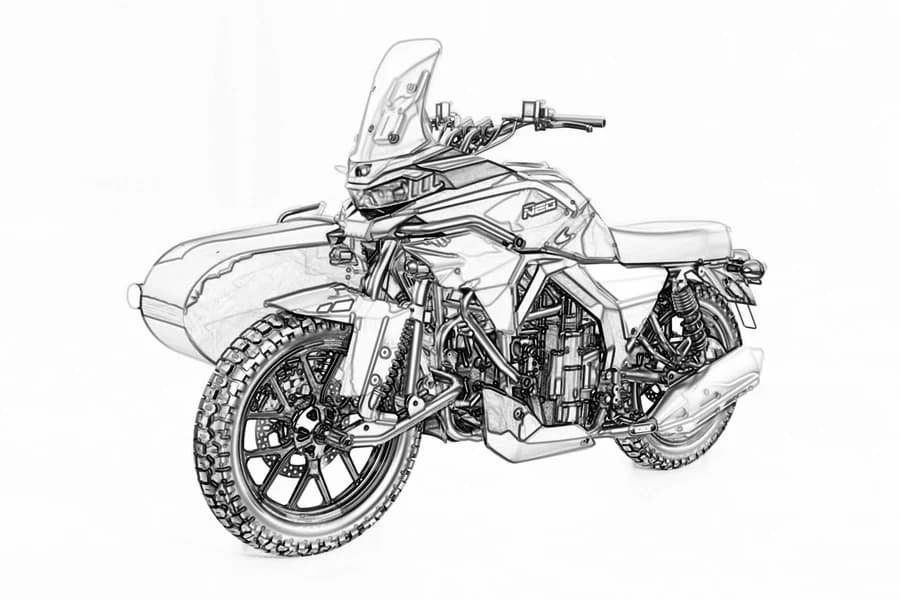

Ural Neo 500 Specifications
Physical Measurements
- Overall Length (inch)
- 82.3
- Overall Height (inch)
- 52.7
- Overall Width (inch)
- 64.2
- Seat Height, Unladen (inch)
- 31.6
- Ground Clearance, Unladen (inch)
- 6.9
- Dry Weight (lbs.)
- 630
Engine and Transmission
- Engine Type
- 4-stroke Parallel Twin
- Valves Train
- SOHC, 2 Valves per Cylinder
- Displacement (cc)
- 446
- Bore and Stroke (mm x mm)
- 65.5 x 66.2
- Compression
- 10.5:1
- Max Output (hp)
- 33.5 @ 7,500 rpm
- Max Torque (ft-lbs)
- 26.8 @ 6,000 rpm
- Fuel Injection
- Throttle Body
- Starting System
- Electric
- Clutch
- Wet Multi-Disc
- Transmission Type
- Manual
- Gears
- 5 Forward, 1 Reverse
- Drive
- 520 O-Ring Chain
Chassis
- Front Suspension
- Leading link fork with two hydraulic spring shock absorbers (adjustable preload)
- Rear Suspension
- Double sided swing-arm with two hydraulic spring shock absorbers (adjustable preload)
- Sidecar Suspension
- Single sided swing-arm with two hydraulic spring shock absorbers (adjustable preload)
- Wheels (inch)
- 2.15X17 Alloy rim
- Tires
- Kenda K761 120/80-17
- Front Brake
- Three-piston fixed caliper with 276 mm floating rotor
- Rear Brake
- Two-piston fixed caliper with 260 mm floating rotor with a standalone mechanical parking brake caliper
- Sidecar Brake
- Single-piston fixed caliper with 220 mm floating rotor
Electrical
- Charging System
- Peak output 15.7A @ 14V, 220 W
- Battery
- YTX9-BS (12V, 9 Ah)
- Headlight
- LED
- Spark plugs
- NGK CR9E
Miscellaneous
- Recommended Fuel Grade
- Premium Unleaded
- Fuel Tank Capacity (gallons)
- 4.5
- Reserve Fuel (gallons)
- 0.8
- Fuel Economy (mpg)
- Low 30s to high 40s (varies by riding conditions)
- Estimated Range (miles)
- 150–200
- Recommended Max Cruising Speed (mph)
- 70 (60 with passenger and cargo)
- Curb Weight (lbs.)
- 690
- Max Permissible Weight (lbs.)
- 1,150
- Trunk Volume (cu ft.)
- 3.0
